Name: CRESTRON - UC-SB1-CAM
Brand: CRESTRON
SKU: 1002048399
Availability: PreOrder

CRESTRON UC-SB1-CAM

Varenr.:

UC-SB1-CAM

EAN:

8592978328221

Contact Sales Support Services A sleek and stylish soundbar comprising a high-performance conferencing speakerphone and camera in one stunning front-of-room device. Installs cleanly beneath the room display, and interfaces with any computer via USB.

Only Crestron can deliver a smart soundbar that’s this smart.

See it in action

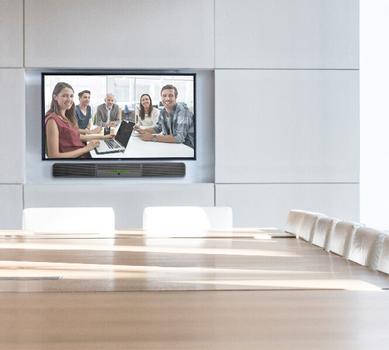

Simple. Sleek. The new Crestron UC Smart Soundbar is the front of the room solution with exceptional audio and image quality that brings out the best in every meeting, in any size room, with a single USB connection.

Hear all.

The Crestron UC Smart Soundbar series delivers decades of audio engineering expertise in every device. Every Crestron UC Smart Soundbar:

Combines Digital Signal Processing–including Acoustic Echo Cancellation, amplification, speakers, and microphones

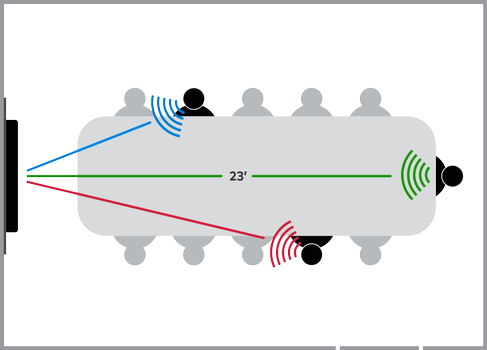

Employs adaptive beam forming technology to pick up whoever is speaking with pinpoint precision
Goes beyond simple voice amplification supporting full range audio, so the richest content has the fullest sound

See all.

The new Crestron UC Smart Soundbar series lets you pick up on every visual cue and gesture. Choose the camera option that best suits your needs. Both cameras give you big picture views with as close to real life quality as you can get. If you want to zero in on speakers or count attendees, then the Crestron UC Soundbar with the enhanced 4K camera is made for you.

Do it all-fast

An installation process that’s as close to instant gratification as you can get.

Get the Crestron UC Soundbar that's right for your room
Mount using integrated bracket
Connect to power
Plug in USB
Play

Hinged mounting allows for easy access to cables

Speakers
Woofers	(2) 3 in. (76 mm) polypropylene cone w/rubber surround
Passive Radiators	(2) 3 x 4‑3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround
Tweeters	(2) 1 in. (25 mm) polyester dome
Amplifier Power	20 W RMS per channel, stereo
Frequency Response	80 Hz to 20 kHz (±3 dB)
Effective Output Level	91 dB SPL @ 1 m, both channels driven at full power
Microphone
Microphone	Linear quad‑element far‑field adaptive beamforming microphone array
Pickup Range	23 ft (7 m) typical
Pickup Angle	180° Horizontal
Frequency Response	20 Hz to 8 kHz
Audio
DSP	Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed); full‑duplex IEEE 1329 Type 1 compliant; Note: DSP affects USB audio in/out only unless noted otherwise
USB Audio In/Out	USB 3.0, UAC 1.0 & HID, AEC‑enabled USB speakerphone, 2‑channel stereo far‑end/content signal input, 2‑channel mono microphone signal output; plug & play compatible with Crestron UC‑ENGINE
Analog Input	2‑Channel stereo, fixed level (bypasses DSP), for in‑room amplification of an external audio source
Analog Input Sensitivity	1 Vrms per channel for full rated output
Analog Output	2‑Channel stereo, fixed level, feeds amplified audio content to an assistive listening system; Note: Output level varies for USB input signal only according to the speaker volume control setting; analog input signal passes through without volume control or DSP
Camera
Model	Huddly IQ (mounted internally)
Image Sensor	12 megapixel Sony® IMX477 Type 1/2.3 CMOS sensor
Lens	High precision, ultra wide angle, six element aspherical glass lens
Field of View	150º diagonal, 120º horizontal, 90º vertical
Aperture	f/2.8
Processor	Intel® Movidius® Myriad® X VPU with Neural Compute Engine hardware accelerator
Pan/Tilt/Zoom	3x lossless digital zoom, pan, and tilt
Autozoom	Genius Framing automatic lossless digital zoom intelligently frames people in the room
Dynamic Light Optimization	Auto‑adjusts light levels and white balance
Noise Reduction	3D noise reduction, bias compensating spatio‑temporal filtering, wide area chroma filtering, flicker elimination
Scaling	Real‑time scaling, dewarping, and perspective correction
People Counting	Detects and reports the number of people in frame
Video
USB Video Out	USB 3.0, UVC 1.1 & HID, conferencing camera; plug & play compatible with Crestron UC‑ENGINE
Output Resolution	HD 1080p @ 30 fps
Color Space	YCbCr 4:2:0, YCbCr 4:2:2, MJPEG
Indicators
Status Bar	(1) Multi‑segment RGBY LED zero‑center mutually‑diverging linear bargraph; Indicates the speaker volume, microphone mute, and speaker mute in red and green LEDs
Connectors
AUDIO IN	(1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio input; Input Level: 1 Vrms maximum; Input Impedance: 10k Ohms
AUDIO OUT	(1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio output; Output Level: 1 Vrms maximum; Output Impedance: 100 Ohms
PC	(1) USB 3.0 Type‑B connector, female; USB 3.0 device port; Connects to UC‑ENGINE or computer; 6 ft (1.83 m) USB 3.0 Type B to Type A cable included
CAMERA	(1) USB 3.0 Type‑A connector, female; USB 3.0 host port; Connects to the internal camera output via a 6 in. (13 cm) USB Type‑C™ to USB 3.0 Type A cable
100‑240V~ 0.5A 50/60Hz	(1) IEC 60320 C14 main power inlet; Mates with removable power cord, included
Power
Main Power	500 mA maximum @ 100‑240 VAC, 50/60 Hz
Power Consumption	22 W
Environmental
Temperature	41° to 104° F (5° to 40° C)
Humidity	10% to 90% RH (non‑condensing)
Heat Dissipation	75 BTU/hr
Construction
Enclosure	Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die‑cast aluminum rear cover, integral steel hinged mounting bracket
Mounting	Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached)
Dimension
Height	4.57 in. (117 mm), 4.64 in. (118 mm) with feet
Width	43.60 in. (1108 mm)
Depth	3.90 in. (100 mm)
Weight
Approximately 15 lb (6.8 kg)
Compliance
CE, IC, UL 62368‑1, CSA C22.2 62368‑1, EN 62368‑1, IEC 62368‑1, FCC Part 15 Class B, ICES‑003 Issue 5 Class B, EN55022:2010 Class B, AS/NZS CISPR22:2010 Class B, AS/NZS CISPR 22:2010 Class B, EN55024:2010, EN61000‑3‑2:2014, EN61000‑3‑3:2013, RoHS compliant

CRESTRON UC-SB1-CAM
